Code: 10012XXX
Category: Surgery

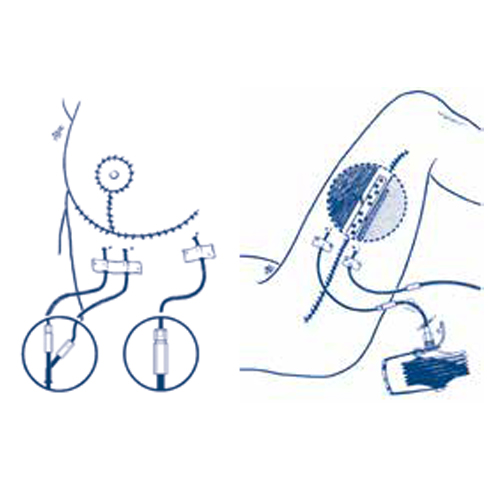

EMODREN is a continuous suction drain warrant a physiologically optimal
drainage of the wound, and preventing post-operative haematomas
without disturbing already initiated coagulation processes.
Its 120-130
mm Hg suction force is produced by a steel spring, which is its main
characteristic. It comes complete with a 100 cm long suction tube, a manually detachable
multi-diameter connection, a drainage tube, and a double Y-connection for
an eventual second drainage tube.
The full range of Emodren products makes it possible to assembly
different sets combining 500/700 ml bellows to 50 cm long drainage tubes of different
diameters with perforation along 14 cm (single rows on Ø 2.4 and 3.2 mm
and double offset rows on Ø 4.2, 4.7, 5.7 mm). Model P is packaged with a disposable Inox guide-
needle already assembled on the drainage tube.
A Bellows
B Expanding spring
C Suction tube threaded connection
D Suction tube
E Clamp
F Multi-diameter connection
G Drainage tube
- Spec
- Brouchure PDF
|
code |
description |
short description |
qty |
|
10012580 |
EMODREN 500 ml with drainage tube Ø 3,2 mm Ch 10 |
EM 1/30 – TD 14/32 |
20 |
|
10012584 |
EMODREN 500 ml with drainage tube Ø 4,2 mm Ch 13 |
EM 1/42 – TD 12/42 |
20 |
|
CUSTOMMADE2 |
EMODREN 500 ml with drainage tube Ø 4,7 mm Ch 14 |
EM 1/47 – TD 12/47 |
20 |
|
CUSTOMMADE1 |
EMODREN 500 ml with drainage tube Ø 5,7 mm Ch 17 |
EM 1/57 – TD 12/57 |
20 |
|
CUSTOMMADE3 |
EMODREN 500 ml with two drainage tube Ø 3,2 mm Ch 10 |
EM 1/30 two TD14/32 |
20 |
|
10012576 |
EMODREN 500 ml with valve and drainage tube Ø 3,2 mm Ch 10 |
EM 1/30 CV – TD 14/32 |
20 |
|
10012585 |
EMODREN 500 ml with valve and drainage tube Ø 4,2 mm Ch 13 |
EM 1/42 CV – TD 12/42 |
20 |
|
10012588 |
EMODREN 500 ml base |
EM 1/BASE |
20 |
|
10012586 |
EMODREN 500 ml BASE with 2 connectors for tubes in silicone |
EM 1/BASE two connectors |
20 |
|
10012587 |
EMODREN 500 ml BASE with valve |
EM 1/BASE CV |
20 |
|
10012582 |
EMODREN P 500 ml with drainage tube Ø 3,2 mm Ch 10 and needle |
EM 1/P – TD 14/32 |
10 |
|
10012609 |
EMODREN P 500 ml with drainage tube Ø 2,4 mm Ch 7 and needle |
EM 1/P - TD 14/22 |
10 |
|
10012603 |
EMODREN P 500 ml with drainage tube Ø 4,2 mm Ch 13 and needle |
EM 1/P - TD 12/42 |
10 |
|
10012604 |
EMODREN P 500 ml with drainage tube Ø 4,7 mm Ch 14 and needle |
EM 1/P - TD 12/47 |
10 |
|
10012605 |
EMODREN P 500 ml with drainage tube Ø 5,7 mm Ch 17 and needle |
EM 1/P TD12/57 |
10 |
|
10012577 |
EMODREN P 500 ml with valve and drainage tube Ø 3,2 mm Ch 10 |
EM 1/P CV – TD 14/32 |
10 |
|
10012601 |
EMODREN P 500 ml with valve and drainage tube Ø 4,2 mm Ch 13 |
EM 1/P CV – TD 12/42 |
10 |
|
10012600 |
EMODREN P 500 ml with valve and drainage tube Ø 4,7 mm Ch 14 |
EM 1/P CV – TD 12/47 |
10 |
|
10012602 |
EMODREN P 500 ml with valve and drainage tube Ø 5,7 mm Ch 17 |
EM 1/P CV – TD 12/57 |
10 |
|
10012583 |
EMODREN 700 ml with drainage tube Ø 4,2 mm Ch 13 |
EM 3/700 – TD 12/42 |
20 |
|
10012578 |
EMODREN 700 ml with drainage tube Ø 4,2 mm Ch 13 |
EM 3/700 CV – TD 12/42 |
20 |
|
CUSTOMMADE9 |
EMODREN P 700 ml with drainage tube Ø 2,4 mm Ch 7 and needle |
EM 3/700 P – TD 14/22 |
10 |
|
CUSTOMMADE4 |
EMODREN P 700 ml with drainage tube Ø 3,2 mm Ch 10 and needle |
EM 3/700 P – TD 14/32 |
10 |
|
CUSTOMMADE8 |
EMODREN P 700 ml with drainage tube Ø 4,7 mm Ch 14 and needle |
EM 3/700 P – TD 12/47 |
10 |
|
10012591 |
EMODREN P 700 ml with drainage tube Ø 5,7 mm Ch 17 and needle |
EM 3/700 P – TD 12/57 |
10 |
|
10012581 |
Spare bellows 500 ml |
MRE 500 |
10 |
