Code: 100125XX
Category: Surgery

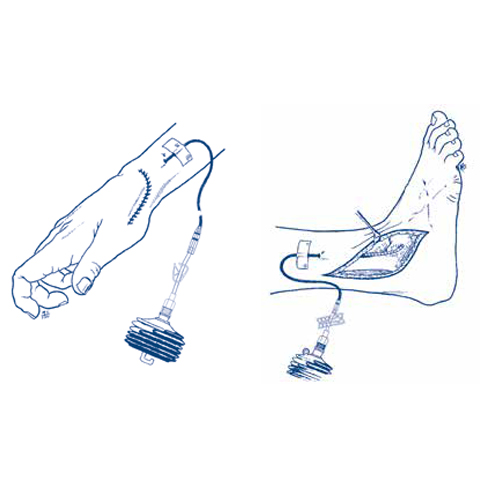

With a relatively modest suction of 70-80 mm Hg,
MINI EMODREN is most suited to surgery of small
parts of the hand or foot, micro-surgery and plastic
surgery.
The perforated drainage tube adapts perfectly to
every anatomical profile, including fingers, thus
preventing the formation of fibrous scar tissue in
the operative wound and tendon sheaths.
It is supplied with a 7 cm suction tube, a manually
detachable multi-diameter connection and a drainage
tube TD 14/22 (Ø 2.4 mm).
The set can be provided with a drainage tube of a
different diameter.
The two models (with 50 and 100 ml bellows) in the
P version come packaged together with a disposable
guide needle already assembled on the drainage tube.
A Suction tube threaded connection
B Clamp
C Multi-diameter connection
D Drainage tube
E Bellows 50 ml
F Bellows 100 ml
- Spec
- Brouchure PDF
code |
description |
short description |
qty |
10012592 |
MINI EMODREN 50 ml with drain tube Ø 2,4 mm Ch 7 |
EM 2/22 – TD 14/22 |
20 |
10012594 |
MINI EMODREN 50 ml with valve and with drain tube Ø 2,4 mm Ch 7 |
EM 2/22 CV - TD 14/22 |
10 |
10012593 |
MINI EMODREN P 50 ml with drain tube Ø 2,4 mm Ch 7 with guide-needle |
EM 2/P – TD 14/22 |
10 |
10012612 |
MINI EMODREN P 50 ml with drain tube Ø 2,4 mm Ch 7 with short guide-needle |
EM 2/P with short needle |
10 |
CUSTOMMADE5 |
MINI EMODREN P 50 ml with drain tube Ø 3,2 mm Ch 10 with guide-needle |
EM 2/P – TD 14/32 |
10 |
10012589 |
MINI EMODREN 100 ml with drain tube Ø 2,4 mm Ch 7 |
EM 2/100 – TD 14/22 |
10 |
CUSTOMMADE6 |
MINI EMODREN 100 ml with drain tube Ø 3,2 mm Ch 10 |
EM 2/100 – TD 14/32 |
10 |
CUSTOMADE10 |
MINI EMODREN 100 ml with drain tube Ø 4,7 mm Ch 14 |
EM 2/100 – TD 12/47 |
10 |
10012590 |
MINI EMODREN P 100 ml with drain tube Ø 2,4 mm Ch 7 with guide-needle |
EM 2/100 P – TD 14/22 |
10 |
CUSTOMMADE7 |
MINI EMODREN P 100 ml with drain tube Ø 3,2 mm Ch 10 with guide-needle |
EM 2/100 P - TD14/32 |
10 |
